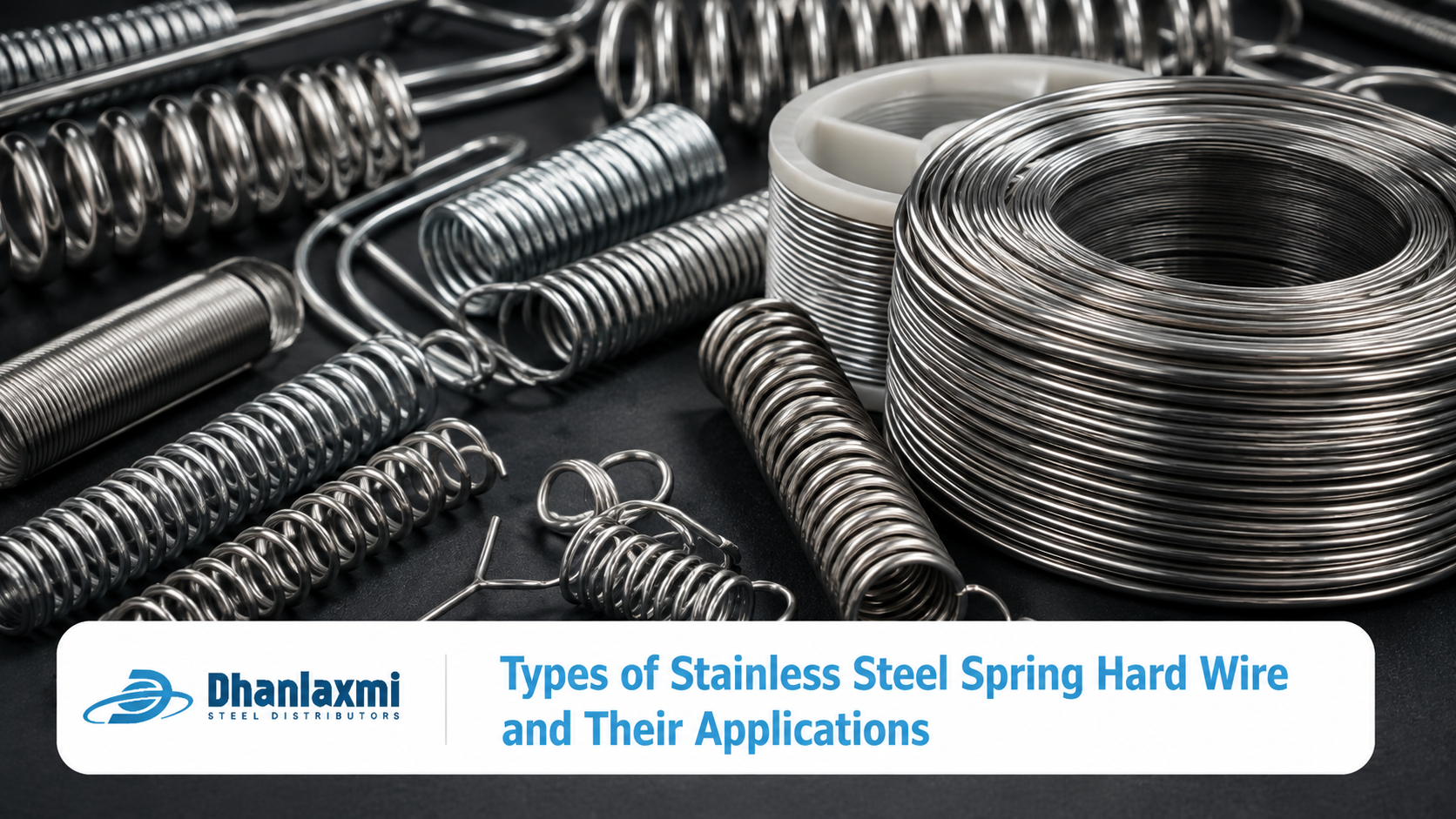

Spring hard wire made from stainless steel serves as the base of springs, clips and formed wire components across industrial products. It must resist corrosion, hold tight tolerances, and spring back to shape after several load cycles. Three grades cover most industrial needs: 302, 304, and 316, each built for a different balance of strength and corrosion resistance. Choosing the wrong grade significantly affects the service life of the spring. This article covers the main types, their properties, common applications and the factors that determine the project’s grade.
What Is Stainless Steel Spring Hard Wire?
Cold drawing turns annealed stainless steel wire into spring tempered wire. Passing the wire through drawing dies reduces its diameter and aligns the internal grain structure, raising tensile strength beyond the annealed state. This gives the wire its spring temper, allowing the property to bend under load and return to its original shape. Annealed wire, by contrast, stays soft and formable but lacks the resilience spring applications need. Manufacturers choose spring hardwire for coil springs, wire forms, and clips, and the grade must match the strength, corrosion, and fatigue demands of the service.
Common Types of Stainless Steel Spring Hard Wire
Stainless Steel 304 Spring Hard Wire
Stainless steel 304 spring hard wire draws its corrosion resistance from about 18% chromium and 8% nickel. It resists oxidation and mild chemical exposure in most indoor and outdoor settings. Manufacturers specify it for wire forms, general-purpose springs, and retaining clips outside marine conditions.
Stainless Steel 316 Spring Hard Wire
Stainless steel 316 spring hard wire adds 2% to 3% molybdenum, which improves resistance to pitting and crevice corrosion from chlorides. This makes it the choice for marine hardware, chemical processing equipment, and components exposed to saltwater or acidic media. The trade-off is a higher cost and a slightly lower strength ceiling than 302.
Stainless Steel 302 Spring Hard Wire
Stainless steel 302 spring hard wire carries a higher carbon content than 304, up to 0.15%, which raises achievable tensile strength after cold drawing. This makes it the standard grade for precision springs, retaining rings, and components where fatigue resistance matters most. ASTM A313 lists 302 as a baseline grade for stainless spring wire.
Other Stainless Steel Grades
17-7 PH spring wire is precipitation-hardening and reaches higher strength after heat treatment, suiting aerospace and high-load spring designs. Speciality grades like this apply only where standard austenitic grades cannot meet strength or temperature requirements, and buyers should confirm mill availability before specifying one.
Key Properties of Stainless Steel Spring Hard Wire
Seven properties define reliable performance in stainless steel spring hard wire. High tensile strength, developed through cold drawing, lets the wire store and release energy without permanent deformation. Good spring-back permits it to be restored to the initial form after repeated bending. Corrosion resistance shields the wire against oxidation and chemical exposure during its life of service. Resistance to fatigue prevents crack formation under cyclic loading, which is important for springs as they bend many times. Surface finish has an impact on both the look and function, as the surface can have defects that initiate fatigue cracks.
Applications of Stainless Steel Spring Hard Wire
Automotive Industry
Automotive manufacturers use stainless steel spring hard wire for suspension clips, seat springs, retainers and small mechanical components exposed to road salt and moisture.
Industrial Machinery
Industrial equipment relies on this wire for mechanical springs, fasteners and wire forms that must hold tension and shape under continuous operation.
Electrical & Electronics
Electrical connectors, switch contacts, clips and precision springs use stainless steel spring wire for its combination of conductivity, corrosion resistance and consistent spring force.
Medical Equipment
Medical device manufacturers select spring hard wire for surgical instrument springs and precision wire components that should resist corrosion from sterilization and bodily fluids.
Marine & Chemical Applications
Marine hardware, offshore equipment and chemical processing components use 316 spring wire where constant exposure to moisture, salt or chemicals would degrade lower grades.
304 vs 316 vs 302 Spring Hard Wire
Grade selection requires balancing strength, corrosion resistance and environmental exposure. Grade 302 delivers the highest achievable tensile strength from the three and suits precision springs in which fatigue performance under repeated loading matters most. Grade 304 offers a practical balance of corrosion resistance and cost for general service springs and wire forms. Grade 316 trades some strength for superior resistance to chloride-induced pitting, which makes it the choice for marine and chemical environments. The table below matches each grade to its typical application.
| Grade | Main Advantage | Suitable Environment | Typical Applications |
| 302 | High strength and spring properties | General industrial | Precision springs |
| 304 | Versatility and corrosion resistance | General service | Springs and wire forms |
| 316 | Enhanced corrosion resistance | Marine and chemical | Corrosive environments |
Factors to Consider When Selecting Stainless Steel Spring Hard Wire
Selecting the right spring hardwire grade starts with the required tensile strength for the application. The stress capacity of a wire depends on the type of spring and loading conditions, such as compression, extension or torsion. The diameter of the wire and its dimensional tolerances will influence the spring rate and precision of spring manufacturing, so the specifications must be compatible with the forming equipment being used. Fatigue and cycle requirements are most important in applications loaded continuously and repeatedly, where crack resistance is crucial. The criteria engineers verify before ordering include operating temperature, surface finishes, and material specifications of the wire.
Stainless Steel Spring Hard Wire Standards and Quality Considerations
ASTM A313 covers specifications for stainless steel spring wire in the United States, while EN 10270-3 applies across European markets. Both standards define chemical composition, tensile strength ranges by wire diameter and surface finish requirements for each grade. Grade identification and dimensional consistency matter because mismatched wire causes spring rate variation across a production run. Tensile testing confirms that wire meets the strength requirements of its stated grade before it reaches the forming stage. Surface inspection catches defects that could initiate fatigue cracks and material traceability through Material Test Certificates gives industrial buyers documented proof of composition and mechanical properties.
How to Choose the Right Spring Hard Wire Grade
Start by specifying the operating environment, as moisture, chemicals or salt exposure will immediately eliminate some grades. Then determine the necessary spring strength and loading conditions, as this drives whether 302 or an even higher-strength speciality grade is more appropriate. Choose the stainless steel grade to meet corrosion requirements after the strength requirements are established. Validate the wire diameter and dimensional tolerances with your forming tool. Verify that the appropriate standards and certifications (e.g., ASTM A313 / EN 10270-3) are applicable to the task. Purchase from a vendor that guarantees consistent quality and full traceability for every shipment.
Conclusion
Stainless steel spring hard wire comes down to three main grades for most applications: 302 for maximum strength and spring performance, 304 for general-purpose corrosion resistance, and 316 for marine and chemical environments. Matching the grade to operating conditions, load requirements and corrosion exposure determines how long a spring component lasts in service. Dhanlaxmi Steel Distributors supplies stainless steel spring hard wire across these grades with documented Material Test Certificates for industrial procurement. Review the technical specifications and standards for your application before finalising your wire order.
