Alloy Steel Plates

Alloy steel plates are enhanced with alloying elements such as, chromium, nickel, molybdenum and manganese for better performance than regular carbon steel. These elements make it stronger, harder, more resistant to corrosion and more stable at high temperatures. Dhanlaxmi Steel is a reliable alloy steel plates supplier and stockist. We offer high-quality materials made for industries that need accuracy and dependability. We make sure that every product meets international standards for use in power generation, oil and gas, and engineering by guaranteeing on time delivery and high quality.

Each chromoly steel plate grade we offer is designed for demanding high-temperature and high-pressure applications. The 16Mo3 (EN 10028–2) plate work well up to 500°C making it perfect for heat exchangers and boilers. ASTM A387 Grade 11 and Grade 12 are perfect in pressure vessels and pipelines in the oil, gas and petrochemical industries as they are strong and resistant to corrosion. ASME SA 387 Grade 22 is resistant to creep even at 600°C. We also supply SA387 Grade 9 and Grade 5 plates for environments that need better resistance to oxidation and corrosion.

16Mo3 Alloy Steel Plates, 20MnCr5 Alloy Steel Plates, A387 Gr 11 Alloy Steel Plates, Alloy Steel Grade 11 Plate, ASTM A387 Grade 11, A387 Gr 12 Alloy Steel Plates, 16mo3 plate suppliers, SA 387 Gr 12 Supplier.

The combination of elements in alloy steel plates give it great strength and resistance to high temperatures. These qualities make them very important for industries that need performance and durability. Alloy steel plates are used in places where strength, resistance to corrosion and thermal stability are very important like in pressure vessels and pipelines, heavy machinery and construction parts. 16Mo3 plate, 20MnCr5 plate and A387 series are very important in the oil, gas, energy, and manufacturing industries as they work safely even in extreme conditions.

Various Types Of Alloy Steel Plates

A387 Gr 5 Alloy Steel Plate

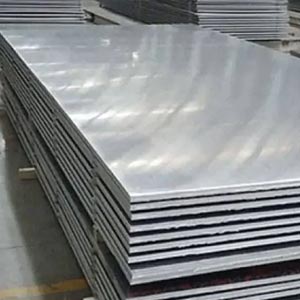

A387 Gr 9 Alloy Steel Plate

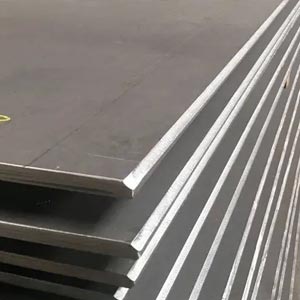

A387 Gr 11 Alloy Steel Plate

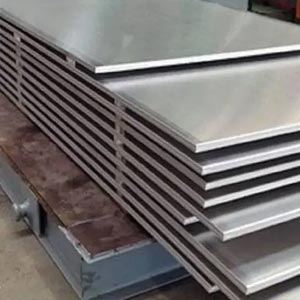

A387 Gr 12 Alloy Steel Plate

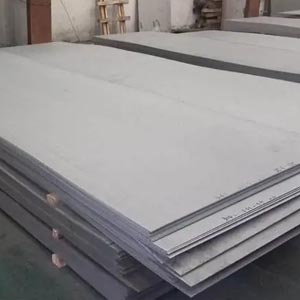

A387 Gr 22
Alloy Steel Plate

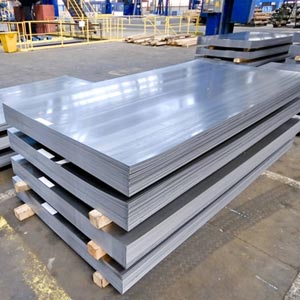

16Mo3 Plate

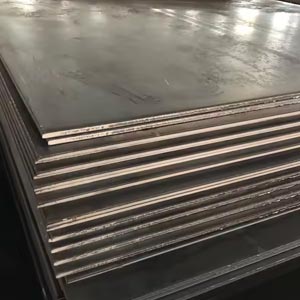

20MnCr5 Plate

SA387 Grade 9
Steel Plates

Buy Alloy Steel Grade 12 Plate, Alloy Steel Grade 22 Plate, Huge Stock of SA 387 Gr 22, ASTM A387 Gr 22, A387 Gr 9 Alloy Steel Plates, Alloy Steel Grade 9 Plate, SA387 Grade 9 Steel Plates Supplier.

Alloy steel plates come with Mill Test Certificates which follow EN 10204 3.1 or 3.2 standards. This ensures quality and traceability. Ultrasonic Testing (UT) checks the internal soundness for important uses. Each plate is securely packed with rust-preventive wrapping and fastened with steel bands on wooden pallets. Clear labeling provides grade, size, and heat number details. We ensure safe delivery and dependable quality in every shipment. Contact us today for premium alloy steel plates built for performance and longevity.

Alloy Steel Plates Specification

Specification	ASTM A387 / ASME SA387
Width	1000mm – 4500mm
Thickness	5mm – 150mm
Length	3000mm – 18000mm
Supply Condition	As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact Tested	52°C
Process of Manufacturing	Hot-Rolled (HR)

We Provide The Best Quality Alloy Steel Plates. We can supply A387 Gr 5 Alloy Steel Plates, ASTM A387 Grade 5, 16Mo3 Steel Plate, check latest price per meter in India.

Request a Quote

Chemical Composition of Alloy Steel Plates

Grade	C	Mn	P	S	Si	Cr	Mo
Grade 5	0.15 max	0.3 – 0.6	0.035	0.03	0.5 max	4.00 – 6.00	0.45 – 0.65
Grade 9	0.15 max	0.30 – 0.6	0.03	0.03	1.0 max	8.0 – 10.0	0.9 – 1.1
Grade 11	0.05 – 0.17	0.4 – 0.65	0.035	0.035	0.5 – 0.80	1.0 – 1.5	0.45 – 0.65
Grade 12	0.05 – 0.17	0.4 – 0.65	0.035	0.035	0.15 – 0.4	0.8 – 1.15	0.45 – 0.6
Grade 22	0.05 – 0.15	0.3 – 0.6	0.035	0.035	0.5 max	2.0 – 2.5	0.9 – 1.1

Mechanical Properties of Alloy Steel Plates

Grade	A387 Gr 2	A387 Gr 5	A387 Gr 9	A387 Gr 11	A387 Gr 12	A387 Gr 22	A387 Gr 91	A204 Gr A	A204 Gr B
TS (MPa)	485 – 620	515 – 690	515 – 690	515 – 690	450 – 585	515 – 690	585 – 760	450 – 585	485 – 620
YS (MPa, Min)	310	310	310	310	275	310	415	255	275
Elongation (%)	22	18	18	22	22	18	18	23	21

Check 16Mo3 Steel Plate, a387 gr 22 alloy steel plates, a387 gr5 alloy steel plates, 20MnCr5 Plate, Alloy Steel Grade 11 Plate, Alloy Steel Grade 12 Plate, Alloy Steel Grade 5 Plate Sizes.

Weight Chart of Alloy Steel Plates

Thickness	Plate Weight per Unit Area	Density
3/16 inches	0.06000 lbs/in²42.184176 kg/m²	0.315 lbs/in³8.72 g/cm³
1/4 inches	0.08 lbs/in²56.245568 kg/m²	0.315 lbs/in³8.72 g/cm³
3/8 inches	0.121 lbs/in²85.0714216 kg/m²	0.315 lbs/in³8.72 g/cm³
1/2 inches	0.161 lbs/in²113.1942056 kg/m²	0.315 lbs/in³8.72 g/cm³
5/8 inches	0.196 lbs/in²137.8016416 kg/m²	0.315 lbs/in³8.72 g/cm³
3/4 inches	0.235 lbs/in²165.221356 kg/m²	0.315 lbs/in³8.72 g/cm³
7/8 inches	0.274 lbs/in²192.6410704 kg/m²	0.315 lbs/in³8.72 g/cm³
1 inches	0.313 lbs/in²220.0607848 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/4 inches	0.391 lbs/in²274.9002136 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/2 inches	0.47 lbs/in²330.442712 kg/m²	0.315 lbs/in³8.72 g/cm³
1 3/4 inches	0.549 lbs/in²385.9852104 kg/m²	0.315 lbs/in³8.72 g/cm³
2 inches	0.627 lbs/in²440.8246392 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/4 inches	0.705 lbs/in²495.664068 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/2 inches	0.784 lbs/in²551.2065664 kg/m²	0.315 lbs/in³8.72 g/cm³
2 3/4 inches	0.862 lbs/in²606.0459952 kg/m²	0.315 lbs/in³8.72 g/cm³
3 inches	0.941 lbs/in²661.5884936 kg/m²	0.315 lbs/in³8.72 g/cm³
