Stainless Steel 202 Crimped Wire Mesh
SS 202 Crimped Wire Mesh Manufacturers, 202 SS Crimped Welded Mesh, Stainless Steel 202 Fine Crimped Mesh, SS 202 Crimped Mesh Price, Stainless Steel 202 Crimped Woven Mesh Suppliers and Exporters.

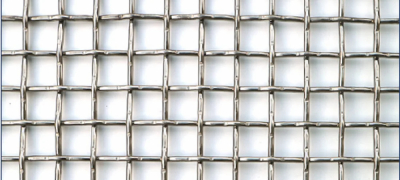

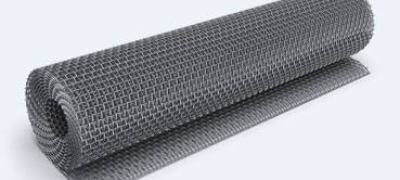

Stainless steel 202 crimped wire mesh is made from high-quality SS 202 alloy which contains nickel, chromium, iron, manganese, nitrogen, silicon, phosphorus, sulfur, and carbon. This mesh is created by crimping the wires before weaving, which gives it strength and stability. It has a strong structure that can withstand severe loads and abrasion. Dhanlaxmi Steel is a trusted ss 202 crimped wire mesh supplier, providing durable products made with precision and care. The material composition provides excellent corrosion resistance, strength, and formability, making it ideal for a variety of demanding applications.
The 202 SS crimped wire mesh has a density of 8.89 g/cm³, a tensile strength of 515 MPa, and a yield strength of 275 MPa. With a 40% elongation capacity, it can withstand tension without breaking. These characteristics make the 202 ss crimped wire mesh robust and flexible, allowing it to perform effectively in difficult working environments. It also retains its shape despite intensive use, ensuring a long service life.
SS 202 Crimped Wire Mesh Manufacturers, 202 Stainless Steel Crimped Welded Mesh, Fine SS 202 Crimped Mesh, Durable Stainless Steel 202 Crimped Woven Wire Mesh Suppliers and Exporters
Stainless Steel 202 Crimped Wire Mesh
SS Crimped Wire Mesh
Stainless steel 202 crimped wire mesh is used in industries like mining, construction, agriculture, and food processing. It work well for sieving, filtering, fencing, and support structures. Its strength and corrosion resistance make it a preferred choice for outdoor and industrial settings where durability matter.
Precision crimping and weaving procedures are used to create the mesh which result in regular spacing and tight joints. As a ss 202 crimped wire mesh supplier, we follow quality checks to meet industry standards. Each batch go through tests for strength, durability, and finish before packaging. Products are securely wrapped to avoid damage during transit and ensure they reach customers in perfect condition. Contact us for reliable and long-lasting stainless steel 202 crimped wire mesh that meet high quality and performance standards.
Specification Table Stainless Steel 202 Crimped Wire Mesh
| Specification | Details |
| Grade | 304, 304L, 316, 316L, 309S, 310S, 321, etc. |
| Aperture | 1.0 – 100 mm |
| Wire Diameter | 0.5 – 12.7 mm |
| Width | 1 m, 1.2 m, 2 m, or Customized |
| Length | Cut-to-length; 30 m/Roll, 50 m/Roll, etc. |
| Packing Detail | Pallet, Crate |
Stainless Steel 202 Crimped Wire Mesh Chemical Composition
| Element | Percentage (%) |
| Carbon (C) | 0.15 max |
| Manganese (Mn) | 7.50 – 10.00 |
| Nickel (Ni) | 4.00 – 6.00 |
| Chromium (Cr) | 17.00 – 19.00 |
| Phosphorus (P) | 0.060 max |
| Sulfur (S) | 0.030 max |
| Silicon (Si) | 1.00 max |
| Nitrogen (N) | 0.25 max |
| Iron (Fe) | Balance |
Stainless Steel 202 Crimped Wire Mesh Physical Properties
| Property | Value |
| Density | 7.80 g/cm³ |
| Melting Point | 1400 – 1450 °C |
| Tensile Strength | ~ 515 MPa (minimum) |
| Yield Strength (0.2% proof) | ~ 275 MPa (minimum) |
| Elongation | ~ 40% |
| Hardness (Brinell) | 200 HB max |
| Modulus of Elasticity | ~ 200 GPa |
| Thermal Conductivity | 15 W/m·K (at 100 °C) |
| Electrical Resistivity | 0.73 µΩ·m |
| Magnetic Properties | Slightly magnetic after cold working |
