Stainless Steel Wire Rope Clamp
Stainless Steel Wire Rope Clamp, 3 mm 202 Stainless Steel Wire Rope Clamp, SS 304 Stainless Steel Wire Rope Clamp, SS 316 Heavy Duty Stainless Steel Wire Rope Clamp

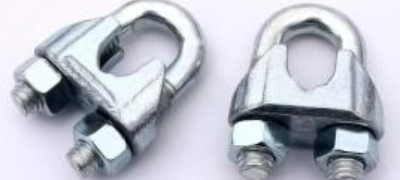

The SS Wire Rope Clamp is a simple yet important fitting used to secure wire ropes in place. It is made of stainless steel, offering strength and reliability in demanding conditions. The clamp is built with three key parts such as the U-bolt, which goes around the rope, the saddle, which holds the rope tightly, and the hex nuts, which lock the clamp firmly. These ss wire rope clamp sizes are suitable for different applications. Dhanlaxmi Steel, a trusted name in the industry, offers a complete range of stainless steel rope clamps that are built to last. They are designed to meet mechanical needs across many sectors making them dependable for both light and heavy-duty use.

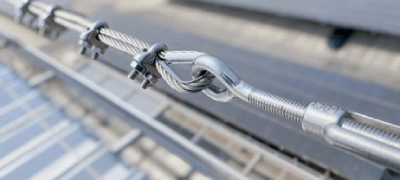

Our SS wire rope clamps are widely used in different industries due to their strength and ease of use. In the marine and shipping sector, they are used to secure ropes on boats, ships, and docks. In construction, they help with scaffolding, lifting, and rigging jobs. Heavy industries rely on them for cranes, elevators, and hoisting systems. They are also common in transportation, where they form rope eye loops for trucks, trailers, and tie-downs. In agricultural, stainless steel rope clamps support fencing, greenhouse frames, and cable setups. Their wide use shows how important they are in daily operations, where safety and load support matter most.
Stainless Steel Wire Rope Clamp, SS 202 Wire Rope Clip, SS 304 Wire Rope Clamp, SS 316 Stainless Steel Wire Rope Clip, Heavy Duty Stainless Steel Rope Clamp
Stainless Steel Wire Rope Clamp
SS Wire Rope Clamp
Every stainless wire rope clamp is designed to perform well in every environment. Made from grades like SS304 and SS316, they offer high tensile strength and long service life. Their corrosion resistance makes them ideal for outdoor and marine use, even in harsh weather. These clamps are known for their durability and reusability, so they may be removed and used again if needed. The strong grip of a steel wire rope clamp, ensures ropes are held firmly without slipping. With reliable function and secure locking, they are a preferred choice across many fields.
Each clamp goes through strict quality checks and tests before supply. Visual inspection, load tests, and dimensional checks are done to ensure accuracy. Clamps are packed carefully in sturdy boxes or bags to avoid damage during delivery. As a stainless steel wire rope clamp manufacturer, we offer dependable products that meet international requirements. If you need ss wire rope clip for industrial use, we deliver the right solution with assured quality.
Equivalent Grade Stainless Steel Wire Rope Clamp
| Grade | Equivalent Standards |
| SS 202 | AISI 202, UNS S20200, ASTM A276 / A314, SAE 30202 |
| SS 304 | UNS S30400, SAE 304, ISO X5CrNi18-10, SUS304, A2 (ISO 3506) |
| SS 316 | UNS S31600, SAE 316/316L, EN X2CrNiMo17-12-2 |
Stainless Steel Wire Rope Clamp Chemical Composition
| Element | SS 202 | SS 304 | SS 316 |
| Chromium (Cr) | 17–19% | 18–20% | 16–18% |
| Nickel (Ni) | 4–6% | 8–10.5% | 10–14% |
| Molybdenum (Mo) | – | – | 2–3% |
| Manganese (Mn) | 7.5–10% | ~2% | ~2% |
| Carbon (C) | ≤ 0.15% | ≤ 0.08% | ≤ 0.08% |
| Others (Si, P, S, N) | Si ≤ 1%, P ≤ 0.06%, S ≤ 0.03%, N ≤ 0.25% | Si ~0.75%, P ≤ 0.045%, S ≤ 0.03%, N ≤ 0.1% | Similar to 304 |
Physical Properties of SS Wire Rope Clamp
| Property | SS 202 | SS 304 | SS 316 |
| Tensile Strength | ~515 MPa | ~515 MPa | ~515 MPa or higher |
| Yield Strength (0.2% offset) | ~275 MPa | ~205 MPa | ~210–220 MPa |
| Elongation at Break | ~40% | ~40% | ~40% |
| Density | 7.80 g/cm³ | 7.93 g/cm³ | 7.98 g/cm³ |
| Melting Point | 1400–1450 °C | 1400–1450 °C | 1375–1400 °C |
| Elastic Modulus | 200–207 GPa | 200 GPa | 200 GPa |
