MS Plates

MS Plates or Mild Steel Plates, are flat sheets made from low-carbon steel, known for its strength, durability, and ease of welding. Our plates find extensive application in multiple industries such as construction, manufacturing, and equipment fabrication, owing to their adaptability and ease of handling. It is available in different forms, including round, chequered, flat, square, stiffener, and liner plates, designed to fulfill particular structural and mechanical requirements. The plates are manufactured, with precise dimensions, smooth surface finishes, and uniform mechanical strength to ensure lasting performance across diverse applications.

Mild steel plates have high tensile strength, durability, and resistance to corrosion and abrasion. Its excellent weldability and formability make it perfect for projects in harsh environments. Due to its qualities, MS plates are widely used in industries such as, petrochemicals, oil and gas, maritime, construction, and heavy machinery production. Before being shipped, each plate is subjected to strict quality testing, which includes chemical analysis, mechanical examination, and toughness evaluation to verify conformity with industry requirements.

MS Chequered Plate, ms plate shuttering, MS Steel Plate, MS Checkered Plate, MS Plate Dealers, MS Plate 10mm, MS Flat Plate, MS Square Plate, ms plates manufacturer, Checker Plate MS, ms plates Supplier.

Our MS plates meet international specifications including ASTM A36/ASME SA 36M, and BSEN 10025 S 275 JR, among others. The plates are usually offered in standard thicknesses ranging from 10 to 80 mm. The manufacturing process is closely monitored to achieve features such as high strength and weldability. One of the main reasons our mild steel plates are used to build strong structures and durable machinery components all over the world is due to the fact, we always follow high standards of quality.

Various Types Of MS Plates

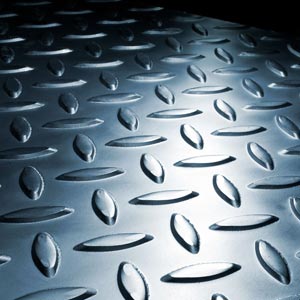

MS Chequered Plate

MS Steel Plate

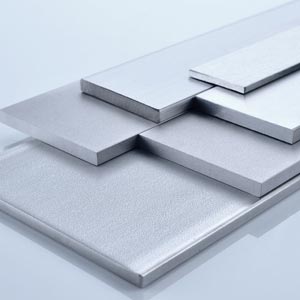

MS Flat Plate

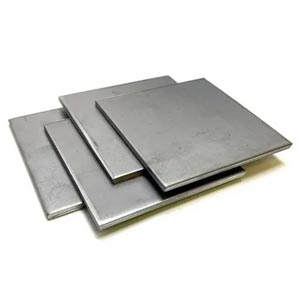

MS Square Plate

MS Liner Plate

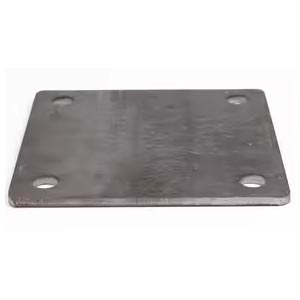

MS Stiffener Plate

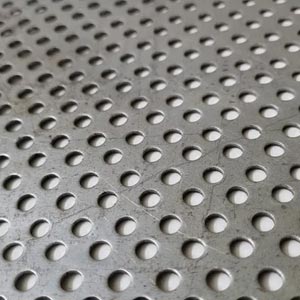

Perforated MS Plate

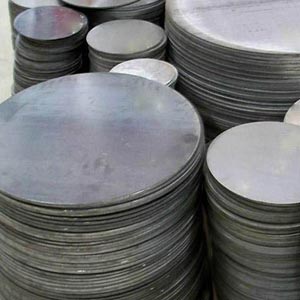

Round MS Plate

Buy Chequered Plate MS, MS Liner Plate, MS Plate Bar, Huge Stock of MS Stiffener Plate, Perforated MS Plate, ms plates stockist, Round MS Plate Supplier.

Dhanlaxmi Steels is an ISO 9001:2015, and PED 2014/68/EU-certified firm, is committed to quality and customer satisfaction. Each plate comes with a self-inspection and raw material certificate to provide transparency throughout the process. Rust, and damage-free packaging in transportation assures security. For reliable and affordable mild steel plates contact us today for your specific project requirements and request a thorough quote.

MS Plates Specification

Category	Steel Plates
Thickness	6MM-350MM, 2MM-20MM
Width	1250MM-3000MM, 1250-1500MM
Length	6000-12000MM
Length	1000 mm To 6000 mm Long
Mild Steel Plate Production	Hot-Rolled (HR) / Cold-Rolled (CR)
Surface Treatment	Polished

We Provide The Best Quality Chequered Plate MS. We can supply MS Liner Plate, MS Plate Bar, check latest price per meter in India.

Request a Quote

Chemical Composition of MS Plates

Element	Content
Carbon, C	0.14 – 0.20 %
Iron, Fe	98.81 – 99.26 % (as remainder)
Manganese, Mn	0.60 – 0.90 %
Phosphorous, P	≤ 0.040 %
Sulfur, S	≤ 0.050 %

Mechanical Properties of MS Plates

Mechanical Properties	Metric	Imperial
Hardness, Brinell	126	126
Hardness, Knoop (Converted from Brinell hardness)	145	145
Hardness, Rockwell B (Converted from Brinell hardness)	71	71
Hardness, Vickers (Converted from Brinell hardness)	131	131
Tensile Strength, Ultimate	440 MPa	63800 psi
Tensile Strength, Yield	370 MPa	53700 psi
Elongation at Break (In 50 mm)	15.0 %	15.0 %
Reduction of Area	40.0 %	40.0 %
Modulus of Elasticity (Typical for steel)	205 GPa	29700 ksi
Bulk Modulus (Typical for steel)	140 GPa	20300 ksi
Poisson Ratio (Typical For Steel)	0.290	0.290
Machinability (Based on AISI 1212 steel. as 100% machinability)	70 %	70 %
Shear Modulus (Typical for steel)	80.0 GPa	11600 ksi

Check MS Chequered Plate, ms plate price, ms shuttering plate price, MS Steel Plate, MS Checkered Plate, MS Plate Dealers, MS Plate 10mm, MS Flat Plate Sizes.

Weight Chart of MS Plates

Weight kg/sq.m	Guage	Thickness in mm
557.4		71
628		80
439.6		56
494.5		63
353.2		45
392.5		50
282.6		36
251.2		32
314		40
172.7		25
219.8		28
141.3		18
157		20
78.5		12
125.6		16
47.1		6
62.8		8
31.4	8	4
39.25		5
24.75	10	3.15
27.9	9	3.55
19	12	2.5
22	11	2.8
15.7	14	2
17.6	13	2.25
12.55	16	1.6
14.15	15	1.8
9.8	18	1.25
11	17	1.4
7.85	20	1
8.8	19	1.12
6.3	22	0.8
7.05	21	0.9
3.9	26	0.5
4.95	24	0.63
3.15	28	0.4

Mild Steel Perforated Sheet Size Chart

Perforated MS				Round Hole (R)
Perforated MS				Square Hole (C)
% Open Area	Hole Size	Pattern	Pitch	Thickness	Sheet Size
23	R1.00	M011	T2.00	1.00	2m x 1m
23	R1.50	M015	T3.00	1.00	2m x 1m
23	R1.50	M016	T3.00	1.50	2m x 1m
40	R2.00	M020	T3.00	1.00	2m x 1m
30	R2.00	M022	T3.50	1.50	2m x 1m
35	R2.50	M024	T4.00	1.00	2m x 1m
35	R2.50	M025	T4.00	1.50	2m x 1m
33	R3.00	M030	T5.00	1.00	2m x 1m
33	R3.00	M031	T5.00	1.50	2m x 1m
33	R3.00	M032	T5.00	2.00	2m x 1m
33	R3.00	M033	T5.00	3.00	2m x 1m
50	R3.00	M034	T4.00	2.00	2m x 1m
36	C3.00	M035	U5.00	1.00	2m x 1m
40	R4.00	M041	T6.00	1.50	2m x 1m
40	R4.00	M043	T6.00	3.00	2m x 1m
7	R4.50	M045	U15.00	1.50	2m x 1m
35	R5.00	M050	T8.00	1.00	2m x 1m
35	R5.00	M051	T8.00	1.50	2m x 1m
35	R5.00	M052	T8.00	3.00	2m x 1m
39	C5.00	M056	U8.00	1.00	2m x 1m
40	R6.00	M060	T9.00	1.00	2m x 1m
40	R6.00	M061	T9.00	1.50	2m x 1m
40	R6.00	M063	T9.00	3.00	2m x 1m
33	R6.00	M065R	T10.00	6.00	2m x 1m
48	R8.00	M080	T11.00	1.00	2m x 1m
40	R8.00	M081	T12.00	1.50	2m x 1m
48	R8.00	M082	T11.00	2.00	2m x 1m
40	R10.00	M100	T15.00	1.00	2m x 1m
40	R10.00	M101	T15.00	1.50	2m x 1m
40	R10.00	M103	T15.00	3.00	2m x 1m
40	R10.00	M104	T15.00	5.00	2m x 1m
51	C10.00	M105	U14.00	1.50	2m x 1m
51	R12.00	M112	T16.00	3.00	2m x 1m
54	C15.00	M140	U20.00	2.00	2m x 1m
46	R15.00	M150	T21.00	2.00	2m x 1m
46	R20.00	M203	T28.00	3.00	2m x 1m
